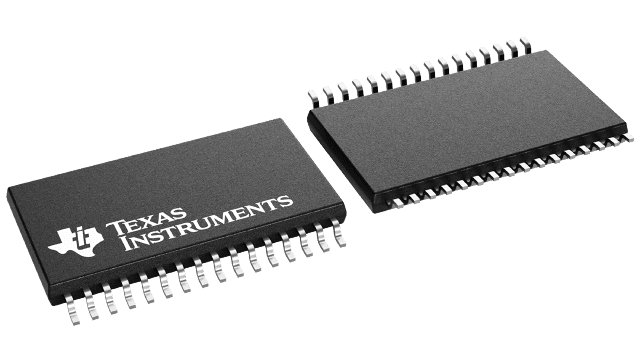

THS1206CDAR
Texas Instruments
Category: Data Converters
THS1206 12-Bit, 6 MSPS ADC Quad Ch. (Config.), DSP/uP IF, Integ. 16x FIFO, Channel AutoScan, Low Power
$11.22 - $20.09
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-THS1206CDAR-ND | 1358 | 7 | $8.00 | $20.10 | $20.10 | $20.10 | $36.33 | Buy | |
|
 |
Arrow North American Components | THS1206CDAR | 0 | 2000 | $33.40 | Buy | |||||
|
 |
AVNET Europe | THS1206CDAR | 2000 | * $17.95 | Buy | ||||||
|
|
AVNET Express | THS1206CDAR | 1900 | 1 | $16.53 | $16.53 | $15.89 | $15.89 | Buy | ||
|
|
Mouser Electronics | 595-THS1206CDAR | 0 | 2000 | $18.10 | Buy | |||||
|
|
Newark | THS1206CDAR | 2000 | $11.22 | $11.22 | $11.22 | $11.22 | $11.22 | $11.22 | Buy | |
|
|
Perceptive | THS1206CDAR | 48300 | 1+ | Buy | ||||||
|
|
Texas Instruments | THS1206CDAR | 190 | 1 | $20.09 | $20.09 | $20.09 | $17.55 | $12.10 | $12.10 | Buy |
|
|
Verical Marketplace | THS1206CDAR | 1358 | 25 | $45.76 | $43.48 | $38.90 | $36.61 | Buy | ||
|
|
Win Source | THS1206CDAR | 444 | 2 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| # Input Channels | 4 |
| Analog Voltage AVDD(Max)(V) | 5.25 |
| Analog Voltage AVDD(Min)(V) | 4.75 |
| Approx. Price (US$) | 10.20 | 1ku |
| Architecture | Pipeline |
| Digital Supply(Max)(V) | 5.25 |
| Digital Supply(Min)(V) | 3 |
| INL(Max)(+/-LSB) | 1.5 |
| Input Range(Max)(V) | 4 |
| Input Range(Min)(V) | 1.4 |
| Input Type | Differential,Single-Ended |
| Integrated Features | N/A |
| Interface | Parallel |
| Multi-Channel Configuration | Simultaneous Sampling |
| Operating Temperature Range(C) | -40 to 125,-40 to 85,0 to 70 |
| Package Group | TSSOP |
| Package Size | mm2 |
| Power Consumption(Typ)(mW) | 186 |
| Rating | Catalog |
| Reference Mode | Ext,Int |
| Resolution(Bits) | 12 |
| SINAD(dB) | 65 |
| SNR(dB) | 69 |
| Sample Rate (max)(SPS) | 6MSPS |
| THD(Typ)(dB) | -70 |
