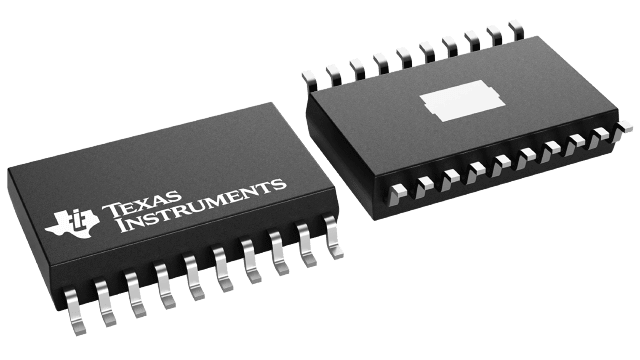

THS6012CDWP
Texas Instruments
Category: Drivers and Interfaces
THS6012 500-mA Dual Differential DSL and PLC Line Driver
$4.85 - * $12.16
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-THS6012CDWPR-ND | 33260 | 57 | $10.80 | $9.76 | $9.30 | $8.08 | $5.51 | $6.26 | Buy |
|
|
Ameya360 | THS6012CDWP | 175 | $6.54 | $6.54 | $6.54 | Buy | ||||
|
 |
Arrow North American Components | THS6012CDWP | 0 | 75 | $10.60 | $8.63 | $8.63 | $6.34 | $5.67 | $0.00 | Buy |
|
 |
AVNET Asia Pacific | THS6012CDWP | 25 | $5.83 | Buy | ||||||
|
 |
AVNET Europe | THS6012CDWP | 100 | 25 | * $6.49 | * $6.18 | * $5.45 | * $5.45 | Buy | ||
|
|
AVNET Express | THS6012CDWP | 1522 | 1 | $6.28 | $5.89 | $5.89 | Buy | |||
|
|
element14 APAC | THS6012CDWP | 2 | 1 | * $12.16 | * $10.98 | * $10.46 | * $10.26 | * $10.26 | * $10.26 | Buy |
|
 |
Farnell | THS6012CDWP | 2 | 1 | * $11.40 | * $10.29 | * $10.20 | * $10.15 | * $10.15 | * $10.15 | Buy |
|
|
Mouser Electronics | 595-THS6012CDWP | 42 | 1 | $10.45 | $9.45 | $9.01 | $7.32 | $5.66 | $5.56 | Buy |
|
|
Newark | THS6012CDWP | 2 | 1 | $12.14 | $11.59 | $10.65 | $10.26 | $10.26 | $10.26 | Buy |
|
|
Perceptive | THS6012CDWP | 46580 | 1+ | Buy | ||||||
|
 |
Quest Components | THS6012CDWP | 36 | $4.50 | $4.50 | $4.50 | $4.50 | $4.50 | Buy | ||
|
|
RS Components | THS6012CDWP | $9.08 | Buy | |||||||
|
|
Texas Instruments | THS6012CDWP | 11262 | 1 | $7.88 | $7.88 | $7.88 | $6.42 | $4.28 | $4.28 | Buy |
|
|
Verical Marketplace | THS6012CDWP | 15 | 2 | $9.05 | $5.66 | $6.24 | $5.45 | $5.45 | $5.45 | Buy |
|
|
Win Source | THS6012CDWP | 1400 | 13 | $3.92 | $3.34 | $3.34 | $3.34 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| 2nd Harmonic(dBc) | 80 |
| 3rd Harmonic(dBc) | 85 |
| @ MHz | 1 |
| Acl, min spec gain(V/V) | 1 |
| Additional Features | N/A |
| Approx. Price (US$) | 3.87 | 1ku |
| Architecture | Current FB |
| BW @ Acl(MHz) | 140 |
| CMRR(Min)(dB) | 62 |
| CMRR(Typ)(dB) | 70 |
| GBW(Typ)(MHz) | 140 |
| Input Bias Current(Max)(pA) | 10000000 |
| Iq per channel(Max)(mA) | 13 |
| Iq per channel(Typ)(mA) | 11.5 |
| Number of Channels(#) | 2 |
| Offset Drift(Typ)(uV/C) | 20 |
| Operating Temperature Range(C) | -40 to 85,0 to 70 |
| Output Current(Typ)(mA) | 500 |
| Package Group | SO PowerPAD |
| Package Size | mm2 |
| Rail-to-Rail | No |
| Rating | Catalog |
| Slew Rate(Typ)(V/us) | 1300 |
| Total Supply Voltage(Max)(+5V=5, +/-5V=10) | 33 |
| Total Supply Voltage(Min)(+5V=5, +/-5V=10) | 9 |
| Vn at Flatband(Typ)(nV/rtHz) | 1.7 |
| Vos (Offset Voltage @ 25C)(Max)(mV) | 5 |
