THS9000DRWR
Texas Instruments
Category: RF and Microwave

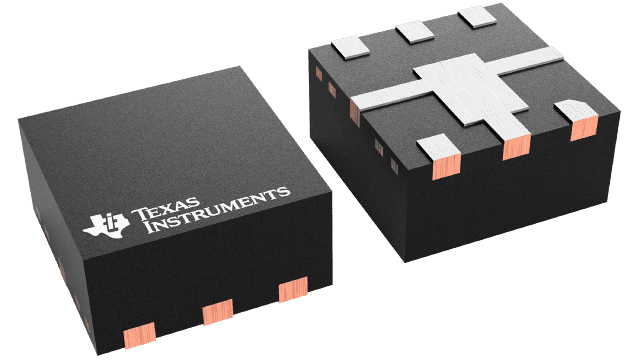

RF Amp Chip Single Cascadable Amp 400MHz 5V 6-Pin VSON T/R
$0.74 - $1.23
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | THS9000DRWR-ND | 0 | 3000 | $0.99 | Buy | |||||
|
 |
Arrow North American Components | THS9000DRWR | 0 | 3000 | $0.68 | $0.68 | $0.68 | $0.68 | $0.68 | $1.03 | Buy |
|
 |
AVNET Europe | THS9000DRWR | 3000 | * $1.01 | Buy | ||||||
|
|
AVNET Express | THS9000DRWR | 3000 | $0.76 | Buy | ||||||
|
|
Mouser Electronics | 595-THS9000DRWR | 0 | 3000 | $0.78 | Buy | |||||
|
|
Texas Instruments | THS9000DRWR | 153450 | 1 | $1.23 | $1.23 | $1.23 | $1.02 | $0.55 | $0.55 | Buy |
|
|
Verical Marketplace | THS9000DRWR | 1054 | 1054 | $1.34 | $0.00 | Buy | ||||
|
|
Win Source | THS9000DRWR | 2000 | 10 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 0.90 | 1ku |
| Current Consumption (mA) | 100 |
| Frequency(Max)(MHz) | 750 |
| Frequency(Min)(MHz) | 50 |
| Gain(Typ)(dB) | 15.7 |
| Impedance Match(Ohms) | 50 |
| Noise Figure(Typ)(dB) | 4 |
| Number of Channels(#) | 1 |
| Operating Temperature Range(C) | -40 to 85 |
| Output Enable | No |
| Output IP3(Typ)(dBm) | 36 |
| P1dB(Typ)(dBm) | 20.7 |
| Package Group | VSON |
| Package Size | mm2 |
| Power Down | No |
| Supply(Typ)(V) | 3-5 |
