TPS53314RGFT
Texas Instruments
Category: Power Management ICs

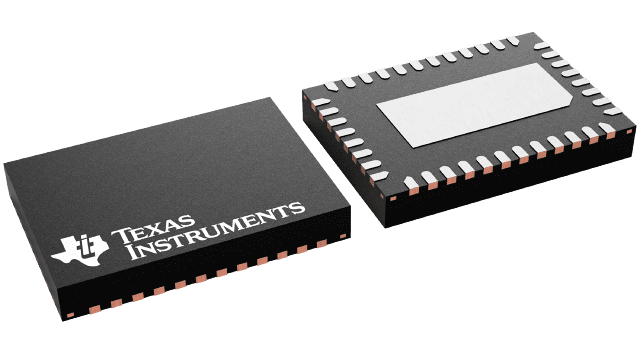

Conv DC-DC Single Step Down 3V to 15V 40-Pin VQFN EP T/R
$2.42 - $48.28
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-TPS53314RGFTDKR-ND | 8000 | $4.85 | $3.69 | $3.40 | $3.08 | $3.32 | $2.14 | Buy | |
|
 |
Arrow North American Components | TPS53314RGFT | 0 | 250 | $2.28 | $2.35 | Buy | ||||
|
 |
AVNET Europe | TPS53314RGFT | 250 | * $3.87 | * $3.41 | Buy | |||||
|
|
AVNET Express | TPS53314RGFT | 250 | 250 | $2.33 | $2.24 | Buy | ||||
|
|
Mouser Electronics | 595-TPS53314RGFT | 250 | 1 | $4.83 | $3.39 | $3.39 | $3.07 | $2.56 | $2.56 | Buy |
|
|
Texas Instruments | TPS53314RGFT | 2000 | 1 | $3.64 | $3.64 | $3.64 | $2.97 | $1.98 | $1.98 | Buy |
|
|
Win Source | TPS53314RGFT | 28200 | 3 | $33.27 | $33.27 | $33.27 | $33.27 | $33.27 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 2.40 | 1ku |
| Control Mode | D-CAP |
| Duty Cycle(Max)(%) | 90 |
| Iout(Max)(A) | 6 |
| Iq(Typ)(mA) | 0.32 |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | VQFN |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Special Features | Adjustable Current Limit,Enable,Light Load Efficiency,Power Good,Pre-Bias Start-Up,Synchronous Rectification |
| Switching Frequency(Max)(kHz) | 1000 |
| Switching Frequency(Min)(kHz) | 250 |
| Type | Converter |
| Vin(Max)(V) | 15 |
| Vin(Min)(V) | 3 |
| Vout(Max)(V) | 5.5 |
| Vout(Min)(V) | 0.6 |
