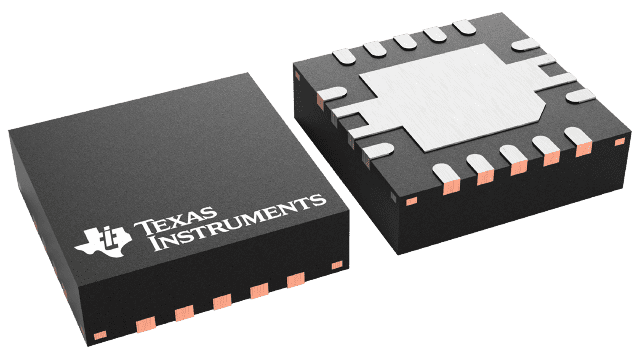

TPS54521RHLT
Texas Instruments
Category: Power Management ICs
TPS54521 17V Input, 5A Synchronous Step-Down Converter
$1.50 - $2.86
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-TPS54521RHLT-ND | 0 | 1 | $3.10 | $2.79 | $2.63 | $2.28 | $1.93 | $1.18 | Buy |
|
|
Ameya360 | TPS54521RHLT | 3500 | $1.54 | $1.54 | Buy | |||||
|
 |
Arrow Asia | TPS54521RHLT | 250 | 250 | $1.29 | $1.20 | Buy | ||||
|
 |
Arrow North American Components | TPS54521RHLT | 0 | 250 | $2.92 | $2.63 | $2.46 | $1.96 | $1.60 | $1.34 | Buy |
|
 |
AVNET Asia Pacific | TPS54521RHLT | 750 | 250 | $1.93 | Buy | |||||
|
 |
AVNET Europe | TPS54521RHLT | 1500 | 250 | * $1.58 | * $1.40 | Buy | ||||
|
|
AVNET Express | TPS54521RHLT | 3222 | 1 | $1.45 | $1.39 | Buy | ||||
|
|
Mouser Electronics | 595-TPS54521RHLT | 200 | 1 | $2.86 | $2.51 | $2.51 | $2.09 | $1.57 | $1.44 | Buy |
|
|
Texas Instruments | TPS54521RHLT | 27676 | 1 | $2.26 | $2.26 | $2.26 | $1.98 | $1.12 | $1.12 | Buy |
|
|
Verical Marketplace | TPS54521RHLT | 390 | 5 | $2.63 | $2.46 | $1.96 | $1.67 | $1.38 | Buy | |
|
|
Win Source | TPS54521RHLT | 68400 | 10 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 0.95 | 1ku |
| Control Mode | Current Mode |
| Duty Cycle(Max)(%) | 98 |
| Iout(Max)(A) | 5 |
| Iq(Typ)(mA) | 0.6 |
| Operating Temperature Range(C) | -40 to 125 |
| Package Group | VQFN |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Special Features | Enable,Frequency Synchronization,Power Good,Pre-Bias Start-Up,Synchronous Rectification,Tracking |
| Switching Frequency(Max)(kHz) | 900 |
| Switching Frequency(Min)(kHz) | 200 |
| Type | Converter |
| Vin(Max)(V) | 17 |
| Vin(Min)(V) | 4.5 |
| Vout(Max)(V) | 15 |
| Vout(Min)(V) | 0.8 |
