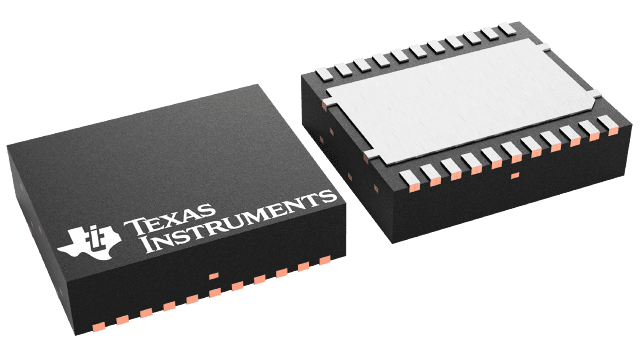

TPS56121DQPT
Texas Instruments
Category: Power Management ICs
Conv DC-DC Single Step Down 4.5V to 14V 22-Pin QFN EP T/R
$4.20 - $1,251.00
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-28348-6-ND | 0 | 1 | $8.48 | $7.66 | $7.30 | $6.34 | $5.38 | $3.24 | Buy |
|
 |
Arrow Asia | TPS56121DQPT | 250 | 250 | $3.70 | $3.40 | Buy | ||||
|
 |
Arrow North American Components | TPS56121DQPT | 0 | 250 | $3.65 | $7.38 | $6.54 | $6.11 | $0.00 | $3.96 | Buy |
|
 |
AVNET Asia Pacific | TPS56121DQPT | 750 | 250 | $6.14 | Buy | |||||
|
 |
AVNET Europe | TPS56121DQPT | 500 | 250 | * $5.08 | * $4.48 | Buy | ||||
|
|
AVNET Express | TPS56121DQPT | 500 | 1 | $4.16 | $3.90 | $3.90 | Buy | |||
|
|
element14 APAC | TPS56121DQPT | 1 | * $9.56 | * $8.64 | * $8.23 | * $8.08 | * $8.08 | * $8.08 | Buy | |
|
 |
Farnell | TPS56121DQPT | 452 | 10 | * $8.14 | * $7.26 | * $6.75 | * $6.75 | * $6.75 | Buy | |
|
|
Mouser Electronics | 595-TPS56121DQPT | 1008 | 1 | $8.04 | $7.25 | $6.91 | $6.01 | $4.56 | $4.39 | Buy |
|
|
Newark | TPS56121DQPT | 19 | 1 | $9.81 | $9.39 | $8.53 | $8.16 | $8.16 | $8.16 | Buy |
|
|
RS Components | TPS56121DQPT | $1,251.00 | Buy | |||||||
|
|
Texas Instruments | TPS56121DQPT | 2554 | 1 | $6.18 | $6.18 | $6.18 | $5.04 | $3.36 | $3.36 | Buy |
|
|
Verical Marketplace | TPS56121DQPT | 6 | 2 | $4.58 | $5.59 | $5.40 | $5.54 | $0.00 | $0.00 | Buy |
|
|
Win Source | TPS56121DQPT | 140000 | 13 | $57.94 | $39.92 | $39.92 | $39.92 | $39.92 | $39.92 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 3.30 | 1ku |
| Control Mode | Voltage Mode |
| Duty Cycle(Max)(%) | 93 |
| Iout(Max)(A) | 15 |
| Iq(Typ)(mA) | 2.5 |
| Operating Temperature Range(C) | -40 to 125 |
| Package Group | LSON-CLIP |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Special Features | Adjustable Current Limit,Enable,Power Good,Pre-Bias Start-Up,Synchronous Rectification |
| Switching Frequency(Max)(kHz) | 1000 |
| Switching Frequency(Min)(kHz) | 300 |
| Type | Converter |
| Vin(Max)(V) | 14 |
| Vin(Min)(V) | 4.5 |
| Vout(Max)(V) | 12 |
| Vout(Min)(V) | 0.6 |
