TPS56921PWP
Texas Instruments
Category: Power Management ICs
TPS56921 4.5V to 17V Input, 9A Synchronous Step-Down Converter with VID Control
$2.39 - $4.75
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | TPS56921PWPR-ND | 0 | 2000 | $4.75 | $4.26 | $4.03 | $3.49 | $2.96 | $1.62 | Buy |
|
 |
Arrow North American Components | TPS56921PWP | 0 | 210 | $2.03 | $2.03 | Buy | ||||
|
 |
AVNET Europe | TPS56921PWP | 70 | * $3.32 | * $2.59 | * $2.59 | Buy | ||||
|
|
AVNET Express | TPS56921PWP | 2538 | 1 | $2.26 | $2.22 | Buy | ||||
|
 |
Farnell | TPS56921PWP | 1 | * $5.25 | * $4.07 | * $4.07 | * $3.96 | * $3.11 | * $3.11 | Buy | |
|
|
Mouser Electronics | 595-TPS56921PWP | 77 | 1 | $4.63 | $4.15 | $4.15 | $3.40 | $2.85 | $2.71 | Buy |
|
|
Newark | TPS56921PWP | 229 | 140 | $3.49 | $3.31 | $3.31 | Buy | |||
|
|
Texas Instruments | TPS56921PWP | 8320 | 1 | $3.42 | $3.42 | $3.42 | $2.99 | $1.69 | $1.69 | Buy |
|
|
Verical Marketplace | TPS56921PWP | 788 | 108 | $3.14 | $2.95 | Buy | ||||
|
|
Win Source | TPS56921PWP | 50200 | 17 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 1.70 | 1ku |
| Control Mode | Current Mode |
| Duty Cycle(Max)(%) | 100 |
| Iout(Max)(A) | 9 |
| Iq(Typ)(mA) | 0.77 |
| Operating Temperature Range(C) | -40 to 125 |

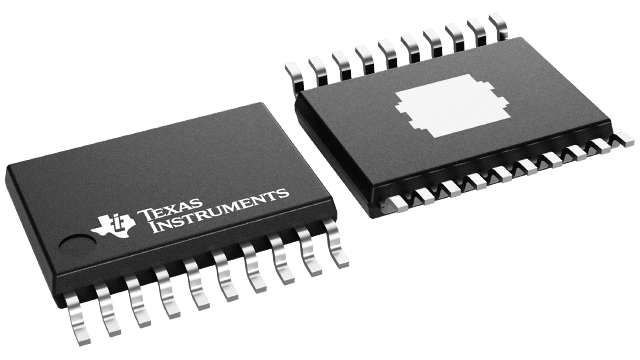

| Package Group | HTSSOP |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Special Features | Dynamic Voltage Scaling,Enable,Power Good,Synchronous Rectification,Tracking,UVLO Adjustable |
| Switching Frequency(Max)(kHz) | 1600 |
| Switching Frequency(Min)(kHz) | 200 |
| Type | Converter |
| Vin(Max)(V) | 17 |
| Vin(Min)(V) | 4.5 |
| Vout(Max)(V) | 1.48 |
| Vout(Min)(V) | 0.72 |
