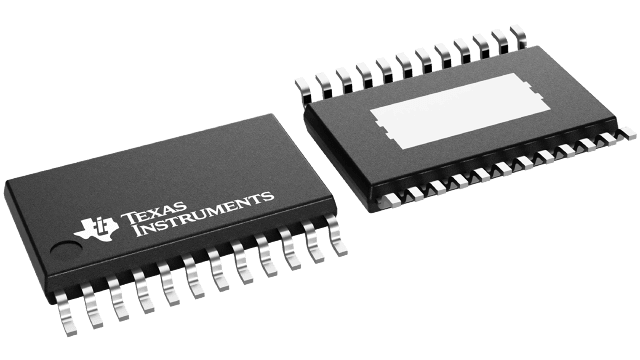

TPS56C20PWPR
Texas Instruments
Category: Power Management ICs
Conv DC-DC Single Step Down 4.5V 17V 24-Pin HTSSOP EP T/R
$2.71 - $6.11
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-TPS56C20PWPRDKR-ND | 0 | 1 | $6.10 | $5.48 | $5.18 | $4.49 | $3.48 | $3.48 | Buy |
|
 |
Arrow North American Components | TPS56C20PWPR | 0 | 2000 | $3.96 | Buy | |||||
|
 |
AVNET Asia Pacific | TPS56C20PWPR | 2000 | $3.14 | Buy | ||||||
|
|
AVNET Express | TPS56C20PWPR | 2000 | $2.62 | Buy | ||||||
|
|
Mouser Electronics | 595-TPS56C20PWPR | 2000 | 1 | $6.11 | $5.49 | $5.19 | $4.50 | $3.35 | $3.34 | Buy |
|
|
Texas Instruments | TPS56C20PWPR | 8119 | 1 | $4.00 | $4.00 | $4.00 | $3.26 | $2.17 | $2.17 | Buy |
|
|
Win Source | TPS56C20PWPR | 7000 | 12 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 2.20 | 1ku |
| Control Mode | D-CAP2 |
| Duty Cycle(Max)(%) | 80 |
| Iout(Max)(A) | 12 |
| Iq(Typ)(mA) | 0.92 |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | HTSSOP |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Special Features | Adjustable Current Limit,Dynamic Voltage Scaling,Enable,Light Load Efficiency,Power Good,Pre-Bias Start-Up,Synchronous Rectification,Voltage Margining |
| Switching Frequency(Max)(kHz) | 500 |
| Switching Frequency(Min)(kHz) | 500 |
| Type | Converter |
| Vin(Max)(V) | 17 |
| Vin(Min)(V) | 4.5 |
| Vout(Max)(V) | 1.87 |
| Vout(Min)(V) | 0.6 |
