TPS659121YFFT
Texas Instruments
Category: Power Management ICs

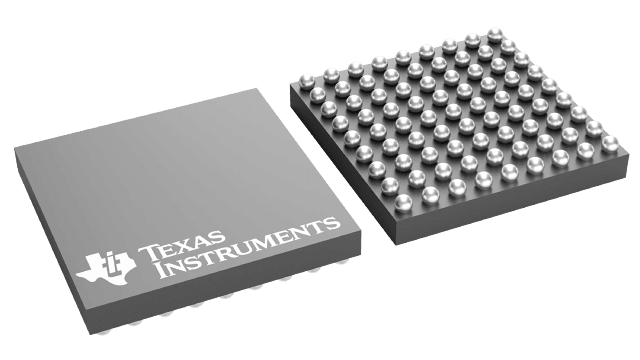

PMU for Processor Power 81-Pin DSBGA T/R
$4.25 - $6.36
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-TPS659121YFFTDKR-ND | 0 | 250 | $0.00 | $0.00 | $0.00 | $0.00 | $6.28 | $6.28 | Buy |
|
 |
Arrow North American Components | TPS659121YFFT | 0 | 250 | $0.00 | $0.00 | Buy | ||||
|
 |
AVNET Europe | TPS659121YFFT | 250 | * $4.60 | * $4.06 | Buy | |||||
|
|
AVNET Express | TPS659121YFFT | 250 | $4.11 | $3.95 | Buy | |||||
|
|
Mouser Electronics | 595-TPS659121YFFT | 0 | 250 | $5.30 | $4.95 | Buy | ||||
|
|
Win Source | TPS659121YFFT | 2900 | 7 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 3.00 | 1ku |
| Iout(Max)(A) | 2.5 |
| LDO | 10 |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | DSBGA |
| Package Size | mm2 |
| Processor Name | Icera i450,3100,6200,FourGee 3600/6300 |
| Processor Supplier | Nvidia,Altair |
| Rating | Catalog |
| Regulated Outputs(#) | 14 |
| Shutdown Current(Typ)(uA) | 3 |
| Special Features | Comm Control,Dynamic Voltage Scaling,Eco-mode,Over Current Protection,Power Sequencing,Thermal Shutdown,UVLO Fixed |
| Step-Down DC/DC Controller | 0 |
| Step-Down DC/DC Converter | 4 |
| Step-Up DC/DC Controller | 0 |
| Step-Up DC/DC Converter | 0 |
| Switching Frequency(Typ)(kHz) | 2800 |
| Vin(Max)(V) | 5.5 |
| Vin(Min)(V) | 0.8 |
| Vout(Max)(V) | 3.8 |
| Vout(Min)(V) | 0.5 |
