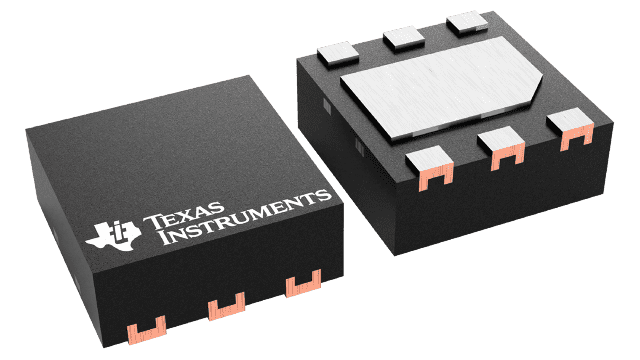

TPS7A3701DRVT
Texas Instruments
Category: Power Management ICs
LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin SON T/R
$0.94 - * $2.32
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
AVNET Asia Pacific | TPS7A3701DRVT | 250 | $1.00 | $0.95 | Buy | |||||
|
 |
AVNET Europe | TPS7A3701DRVT | 250 | 250 | * $1.19 | * $1.05 | Buy | ||||
|
 |
AVNET Express | TPS7A3701DRVT | 88 | 337 | $0.94 | Buy | |||||
|
|
element14 APAC | TPS7A3701DRVT | 55 | 1 | * $2.32 | * $1.98 | * $1.98 | * $1.59 | * $1.38 | * $1.38 | Buy |
|
 |
Farnell | TPS7A3701DRVT | 250 | 100 | * $1.91 | * $1.91 | * $1.91 | Buy | |||
|
|
Newark | TPS7A3701DRVT | 228 | 1 | $2.69 | $2.50 | $2.21 | $2.07 | $2.07 | $2.07 | Buy |
|
 |
Texas Instruments | TPS7A3701DRVT | 51205 | 1 | $1.72 | $1.72 | $1.72 | $1.42 | $0.77 | $0.77 | Buy |
|
|
Win Source | TPS7A3701DRVT | 108010 | 40 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Compliant |
| Accuracy(%) | 1 |
| Additional Features | Enable,Fast Transient Response,Overcurrent Protection,Reverse Current Protection,Thermal Shutdown |
| Approx. Price (US$) | 0.66 | 1ku |
| Fixed Output Options(V) | 2.1,2.5 |
| Iout(Max)(A) | 1 |
| Iq(Typ)(mA) | 0.4 |
| Noise(uVrms) | 32 |
| Operating Temperature Range(C) | -40 to 125 |
| Output Capacitor Type | Ceramic |
| Output Options | Adjustable Output,Fixed Output |
| PSRR @ 100KHz(dB) | 32 |
| Package Group | WSON |
| Package Size(mm2=WxL) | [pf]6WSON[/pf] |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Vdo(Typ)(mV) | 130 |
| Vin(Max)(V) | 5.5 |
| Vin(Min)(V) | 2.2 |
| Vout(Max)(V) | 5.5 |
| Vout(Min)(V) | 1.2 |
