TRF37B32IRTVR
Texas Instruments
Category: RF and Microwave
TRF37B32 700M-2700MHz dual Down Converter Mixer with Integrated IF Amp & RF Baluns
$15.70 - $17.10
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-TRF37B32IRTVR-ND | 29703 | 13 | $13.00 | $13.00 | $13.00 | $18.14 | Buy | ||
|
 |
Arrow North American Components | TRF37B32IRTVR | 0 | 3000 | $19.10 | Buy | |||||
|
 |
AVNET Asia Pacific | TRF37B32IRTVR | 3000 | $15.06 | Buy | ||||||
|
|
AVNET Express | TRF37B32IRTVR | 30000 | 1 | $16.52 | $16.52 | $15.88 | $15.88 | Buy | ||
|
|
Mouser Electronics | 595-TRF37B32IRTVR | 0 | 3000 | $16.76 | Buy | |||||
|
|
Verical Marketplace | TRF37B32IRTVR | 29703 | 25 | $22.86 | $21.73 | $19.44 | $18.29 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Conversion Gain(Typ)(dB) | 10 |
| Current Consumption (mA) | 305 |
| IF Frequency(Max)(MHz) | 600 |
| IF Frequency(Min)(MHz) | 30 |
| IIP3(Typ)(dBm) | 32 |
| IP1dB(Typ)(dBm) | 10.8 |
| Integrated VCO | No |
| LO Input Frequency(Max)(MHz) | 2900 |
| LO Input Frequency(Min)(MHz) | 500 |
| LO Input Level(Typ)(dBm) | 0 |
| Noise Figure(Typ)(dB) | 9.2 |
| Number of Channels(#) | 2 |
| OIP2(Typ)(dBm) | 70 |
| OIP3(Typ)(dBm) | 42 |
| Operating Temperature Range(C) | -40 to 85 |

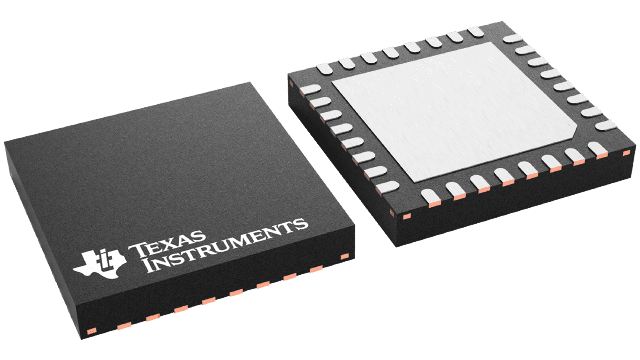

| Package Group | WQFN |
| Package Size | mm2 |
| Power Consumption(Typ)(mW) | 1000 |
| Power Down | Yes |
| RF Frequency(Max)(MHz) | 2700 |
| RF Frequency(Min)(MHz) | 700 |
| Vcc max(Max)(V) | 3.45 |
| Vcc min(Min)(V) | 3.15 |
