UCC21222D
Texas Instruments
Category: Drivers and Interfaces

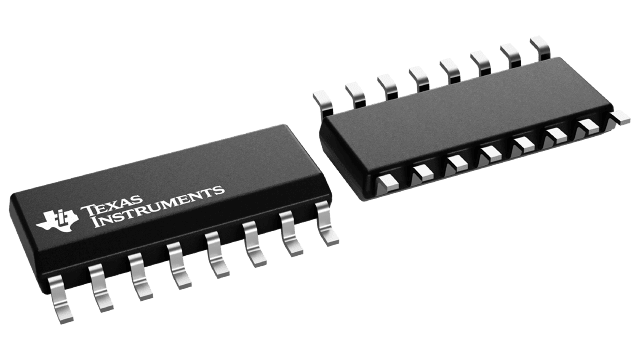

4-A, 6-A, 3.0-kV(RMS) Isolated Dual-Channel Gate Driver With Dead Time 16-SOIC -40 to 125
$1.76 - * $5.52
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-49437-ND | 1837 | 1 | $4.79 | $3.64 | $3.23 | $100.00 | $2.72 | $5,000.00 | Buy |
|
 |
Arrow North American Components | UCC21222D | 0 | 400 | $4.23 | $3.84 | $3.84 | $3.14 | $1.66 | $4.14 | Buy |
|
|
AVNET Express | UCC21222D | 40 | $1.67 | $1.64 | Buy | |||||
|
 |
element14 APAC | UCC21222D | 15 | 1 | * $5.52 | * $4.97 | * $4.70 | * $4.70 | * $4.60 | * $4.60 | Buy |
|
 |
Farnell | UCC21222D | 53 | 1 | * $5.27 | * $4.75 | * $4.68 | * $4.64 | * $4.64 | * $4.64 | Buy |
|
|
Mouser Electronics | 595-UCC21222D | 6934 | 1 | $4.37 | $2.94 | $2.94 | $2.94 | $2.30 | $2.30 | Buy |
|
|
Newark | UCC21222D | 50 | 1 | $5.42 | $5.09 | $4.60 | $4.41 | $4.41 | $4.41 | Buy |
|
|
Texas Instruments | UCC21222D | 52561 | 1 | $3.58 | $3.58 | $3.58 | $3.14 | $1.77 | $1.77 | Buy |
|
|
Verical Marketplace | UCC21222D | 440 | 440 | $5.03 | $0.00 | $0.00 | $0.00 | $2.14 | $0.00 | Buy |
|
|
Win Source | UCC21222D | 6910 | 3 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 1.80 | 1ku |
| Bus Voltage(Max)(V) | 990 |
| DIN V VDE V 0884-10 Working Voltage(Vpk) | 990 |
| DIN V VDE V 0884-10 Transient Overvoltage Rating(Vpk) | 4242 |
| Enable/Disable Function | Disable |
| Fall Time(ns) | 6 |
| Input VCC(Max)(V) | 5.5 |
| Input VCC(Min)(V) | 3 |
| Isolation Rating(Vrms) | 3000 |
| Number of Channels(#) | 2 |
| Operating Temperature Range(C) | -40 to 125 |
| Output VCC/VDD(Max)(V) | 18 |
| Output VCC/VDD(Min)(V) | 9.2 |
| Package Group | SOIC|16 |
| Package Size | mm2 |
| Peak Output Current(A) | 6 |
| Power Switch | MOSFET,IGBT,GaNFET |
| Prop Delay(Max)(ns) | 40 |
| Prop Delay(ns) | 28 |
| Rating | Catalog |
| Rise Time(ns) | 5 |
