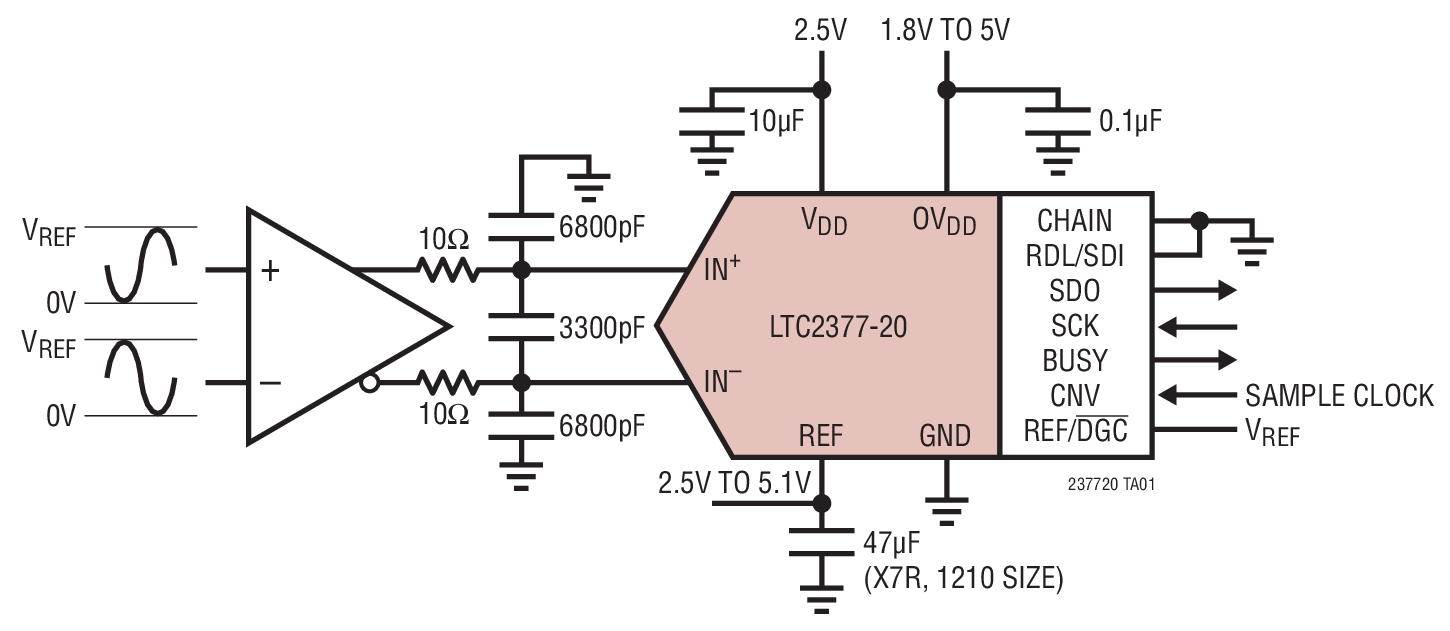

The LTC2377-20 is a low noise, low power, high speed 20-bit successive approximation register (SAR) ADC. Operating from a 2.5V supply, the LTC2377-20 has a ±VREF fully differential input range with VREF ranging from 2.5V to 5.1V. The LTC2377-20 consumes only 10.5mW and achieves ±2ppm INL maximum, no missing codes at 20 bits with 104dB SNR.The LTC2377-20 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V and 5V logic while also featuring a daisy-chain mode. The fast 500ksps throughput with no cycle latency makes the LTC2377-20 ideally suited for a wide variety of high speed applications. An internal oscillator sets the conversion time, easing external timing considerations. The LTC2377-20 automatically powers down between conversions, leading to reduced power dissipation that scales with the sampling rate.The LTC2377-20 features a unique digital gain compression (DGC) function, which eliminates the driver amplifier’s negative supply while preserving the full resolution of the ADC. When enabled, the ADC performs a digital scaling function that maps zero-scale code from 0V to 0.1 • VREF and full-scale code from VREF to 0.9 • VREF. For a typical reference voltage of 5V, the full-scale input range is now 0.5V to 4.5V, which provides adequate headroom for powering the driving amplifier from a single 5.5V supply.Applications Medical Imaging High Speed Data Acquisition Portable or Compact Instrumentation Industrial Process Control Low Power Battery-Operated Instrumentation ATE

The AD7609 is an 18-bit, 8-channel, true differential, simultaneous sampling analog-to-digital data acquisition system (DAS). The part contains analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, an 18-bit charge redistribution successive approximation analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces.The AD7609 operates from a single 5 V supply and can accommodate ±20 V and ±10 V true bipolar differential input signals while sampling at throughput rates up to 200 kSPS for all channels. The input clamp protection circuitry can tolerate voltages up to ±16.5 V on each analog input pin. The AD7609 has 1 MΩ analog input impedance regardless of sampling frequency. The single supply operation, on-chip filtering, and high input impedance eliminate the need for driver op amps and external bipolar supplies. The AD7609 antialiasing filter has a −3 dB cutoff frequency of 32 kHz and provides 40 dB antialias rejection when sampling at 200 kSPS. The flexible digital filter is pin driven, yields improvements in SNR, and reduces the −3 dB bandwidth. Applications Power line monitoring and protection systems Multiphase motor control Instrumentation and control systems Multiaxis positioning systems Data acquisition systems (DAS)

The ADAU1962A is a high performance, single-chip digital-to-analog converter (DAC) that provides 12 DACs with differential or single-ended outputs using the Analog Devices, Inc., patented multibit Σ-Δ architecture. A serial peripheral interface (SPI)/I2C port is included, allowing a microcontroller to adjust volume and many other parameters. The ADAU1962A operates from 2.5 V digital and 3.3 V analog supplies. A linear regulator is included to generate the digital supply voltage from the analog supply voltage. The ADAU1962A is available in an 80-lead LQFP.The ADAU1962A is designed for low EMI. This consideration is apparent in both the system and circuit design architectures. By using the on-board PLL to derive the internal master clock from an external left-right frame clock (LRCLK), the ADAU1962A can eliminate the need for a separate high frequency master clock andcan be used with or without a bit clock. The DACs are designed using the latest Analog Devices continuous time architectures to further minimize EMI. By using 2.5 V digital supplies, power consumption is minimized, and the digital waveforms are asmaller amplitude, further reducing emissions.Note that throughout this data sheet, multifunction pins, such as SCLK/SCL, are referred to by the entire pin name or by a single function of the pin, for example, SCLK, when only that function is relevant.APPLICATIONS Automotive audio systems Home theater systems Digital audio effects processors

The AD5781 is a single 18-bit, unbuffered voltage-output DAC that operates from a bipolar supply of up to 33 V. The AD5781 accepts a positive reference input in the range 5V to VDD – 2.5 V and a negative reference input in the range VSS + 2.5 V to 0 V. The AD5781 offers a relative accuracy specification of ±0.5 LSB max, and operation is guaranteed monotonic with a ±0.5 LSB DNL maximum specification.The part uses a versatile 3-wire serial interface that operates at clock rates up to 35 MHz and that is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides an output clamp feature that places the output in a defined load state.PRODUCT HIGHLIGHTS True 18-Bit Accuracy. Wide Power Supply Range of Up to ±16.5 V. −40°C to +125°C Operating Temperature Range. Low 7.5 nV/√Hz Noise. Low 0.05 ppm/°C Temperature Drift.APPLICATIONS Medical Instrumentation Test and Measurement Industrial Control Scientific and Aerospace Instrumentation Data Acquisition Systems Digital Gain and Offset Adjustment Power Supply Control

The AD5684R nanoDAC+™ is a quad, 12-bit, rail-to-rail, voltage output DAC. The device includes a 2.5V, 2ppm/˚C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5V (gain=1) or 5V (gain=2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design and exhibits less than 0.1% FSR gain error and 1.5mV offset error performance. The device is available in a 3mm X 3mm LFCSP and a TSSOP package.The AD5684R also incorporates a power-on-reset circuit and a RSTSEL pin that ensures the DAC outputs power up to zero-scale or midscale, and remain there until a valid write takes place. Each device contains a per-channel power-down feature that reduces the current consumption of the device to 4 uA at 3 V while in power-down mode.The AD5684R employs a versatile SPI interface that operates at clock rates up to 50 MHz and includes a VLOGIC pin intended for 1.8V/3V/5V logic.Product Highlights High relative accuracy: AD5684R (12-bit): ±1LSB INL max Low drift on-chip reference: 2.5V, 2ppm/°C temperature drift Two package options: 3mm × 3mm 16-lead LFCSP or 16-lead TSSOPApplications Optical transceivers Base-station power amplifiers Process control (PLC I/O cards) Industrial automation Data acquisition systems

The AD5689/AD5687 members of the nanoDAC+™ family arelow power, dual, 16-/12-bit, buffered voltage output digital-to-analogconverters (DACs). The devices include a gain select pingiving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). TheAD5689/AD5687 operate from a single 2.7 V to 5.5 V supply, areguaranteed monotonic by design, and exhibit less than 0.1% FSRgain error and 1.5 mV offset error performance. Both devices areavailable in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5689/AD5687 also incorporate a power-on reset circuitand a RSTSEL pin that ensure that the DAC outputs power upto zero scale or midscale and remain there until a valid writetakes place. Each part contains a per channel power-down featurethat reduces the current consumption of the device to 4 µA at3 V while in power-down mode.The AD5689/AD5687 uses a versatile serial peripheral interfacethat operates at clock rates up to 50 MHz. Both devices containa VLOGIC pin that is intended for 1.8 V/3 V/5 V logic.Product Highlights High Relative Accuracy (INL). AD5687 (12-bit): ±1 LSB maximum Excellent DC Performance. Total unadjusted error: ±0.1% of FSR maximum Offset error: ±1.5 mV maximum Gain error: ±0.1% of FSR maximum Two Package Options. 3 mm × 3 mm, 16-lead LFCSP or 16-lead TSSOPApplications Optical transceivers Base station power amplifiers Process control (PLC I/O cards) Industrial automation Data acquisition systems

The AD7176-2 is a fast settling, highly accurate, high resolution,multiplexed Σ-Δ analog-to-digital converter (ADC) for low bandwidthinput signals. Its inputs can be configured as two fullydifferential or four pseudo differential inputs via the integratedcrosspoint multiplexer. An integrated precision, 2.5 V, low drift(2 ppm/°C), band gap internal reference (with an outputreference buffer) adds functionality and reduces the externalcomponent count.The maximum channel scan data rate is 50 kSPS/channel(settling time of 20 µs), resulting in fully settled data with17 noise free bits. User-selectable output data rates range from5 SPS to 250 kSPS. The resolution increases at lower speeds.The AD7176-2 offers three key digital filters. The fast settlingsinc5 + sinc1 filter maximizes the channel scan rate. The sinc3filter maximizes the resolution for single-channel, low speedapplications. For 50 Hz and 60 Hz environments, the AD7176-2specific filter minimizes the settling times or maximizes therejection of the line frequency. These enhanced filters enablesimultaneous 50 Hz and 60 Hz rejection with a 27 SPS outputdata rate (with a settling time of 36 ms).System offset and gain errors can be corrected on a per channelbasis. This per channel configurability extends to the output datarate used for each channel when using a sinc5 + sinc1 filter. Allswitching of the crosspoint multiplexer is controlled by the ADCand can be configured to automatically control an externalmultiplexer via the GPIO pins.The specified operating temperature range is −40°C to +105°C.The AD7176-2 is housed in a 24-lead TSSOP package.Applications Process control: PLC/DCS modules - Temperature and pressure measurement Medical and scientific multichannel instrumentation Chromatography

The AD7988-1/AD7988-5 are 16-bit, successive approximation,analog-to-digital converters (ADC) that operate from a singlepower supply, VDD. The AD7988-1 offers a 100 kSPS throughput,and the AD7988-5 offers a 500 kSPS throughput. They are lowpower, 16-bit sampling ADCs with a versatile serial interfaceport. On the CNV rising edge, they sample an analog input,IN+, between 0 V to VREF with respect to a ground sense, IN−.The reference voltage, REF, is applied externally and can be setindependent of the supply voltage, VDD.The SPI-compatible serial interface also features the ability todaisy-chain several ADCs on a single 3-wire bus using the SDIinput. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic usingthe separate supply, VIO.The AD7988-1/AD7988-5 generics are housed in a 10-leadMSOP or a 10-lead LFCSP with operation specified from −40°Cto +125°C.Applications Automated test equipment Data acquisition systems Medical instruments Machine automation

The AD7124-4 is a low power, low noise, completely integrated analog front end for high precision measurement applications. The device contains a low noise, 24-bit Σ-Δ analog-to-digital converter (ADC), and can be configured to have 4 differential inputs or 7 single-ended or pseudo differential inputs. The onchip low gain stage ensures that signals of small amplitude can be interfaced directly to the ADC.One of the major advantages of the AD7124-4 is that it gives the user the flexibility to employ one of three integrated power modes. The current consumption, range of output data rates, and rms noise can be tailored with the power mode selected. The device also offers a multitude of filter options, ensuring that the user has the highest degree of flexibility.The AD7124-4 can achieve simultaneous 50 Hz and 60 Hz rejection when operating at an output data rate of 25 SPS (single cycle settling), with rejection in excess of 80 dB achieved at lower output data rates.The AD7124-4 establishes the highest degree of signal chain integration. The device contains a precision, low noise, low drift internal band gap reference, and also accepts an external differential reference, which can be internally buffered. Other key integrated features include programmable low drift excitation current sources, burnout currents, and a bias voltage generator, which sets the common-mode voltage of a channel to AVDD/2. The low-side power switch enables the user to power down bridge sensors between conversions, ensuring the absolute minimal power consumption of the system. The device also allows the user the option of operating with either an internal clock or an external clock.The integrated channel sequencer allows several channels to be enabled simultaneously, and the AD7124-4 sequentially converts on each enabled channel, simplifying communication with the device. As many as 16 channels can be enabled at any time; a channel being defined as an analog input or a diagnostic such as a power supply check or a reference check. This unique feature allows diagnostics to be interleaved with conversions.The AD7124-4 also supports per channel configuration. The device allows eight configurations or setups. Each configuration consists of gain, filter type, output data rate, buffering, and reference source. The user can assign any of these setups on a channel by channel basis.The AD7124-4 also has extensive diagnostic functionality integrated as part of its comprehensive feature set. These diagnostics include a cyclic redundancy check (CRC), signal chain checks, and serial interface checks, which lead to a morerobust solution. These diagnostics reduce the need for external components to implement diagnostics, resulting in reduced board space needs, reduced design cycle times, and cost savings. The failure modes effects and diagnostic analysis (FMEDA) of a typical application has shown a safe failure fraction (SFF) greater than 90% according to IEC 61508.The device operates with a single analog power supply from 2.7 V to 3.6 V or a dual 1.8 V power supply. The digital supply has a range of 1.65 V to 3.6 V. It is specified for a temperature range of −40°C to +105°C. The AD7124-4 is housed in a 32-lead LFCSP package or a 24-lead TSSOP package.Applications Temperature measurement  Pressure measurement  Industrial process control  Instrumentation Smart transmitters Smart transmitters

The AD7124-8 is a low power, low noise, completely integratedanalog front end for high precision measurement applications.The device contains a low noise, 24-bit Σ-Δ analog-to-digitalconverter (ADC), and can be configured to have 8 differentialinputs or 15 single-ended or pseudo differential inputs. The onchiplow gain stage ensures that signals of small amplitude canbe interfaced directly to the ADC.One of the major advantages of the AD7124-8 is that it gives theuser the flexibility to employ one of three integrated powermodes. The current consumption, range of output data rates,and rms noise can be tailored with the power mode selected.The device also offers a multitude of filter options, ensuring thatthe user has the highest degree of flexibility.The AD7124-8 can achieve simultaneous 50 Hz and 60 Hzrejection when operating at an output data rate of 25 SPS (singlecycle settling), with rejection in excess of 80 dB achieved at loweroutput data rates.The AD7124-8 establishes the highest degree of signal chainintegration. The device contains a precision, low noise, lowdrift internal band gap reference and accepts an externaldifferential reference, which can be internally buffered. Otherkey integrated features include programmable low drift excitationcurrent sources, burnout currents, and a bias voltage generator,which sets the common-mode voltage of a channel to AVDD/2.The low-side power switch enables the user to power downbridge sensors between conversions, ensuring the absoluteminimal power consumption of the system. The device alsoallows the user the option of operating with either an internalclock or an external clock.The integrated channel sequencer allows several channels to beenabled simultaneously, and the AD7124-8 sequentially convertson each enabled channel, simplifying communication with thedevice. As many as 16 channels can be enabled at any time, achannel being defined as an analog input or a diagnostic suchas a power supply check or a reference check. This uniquefeature allows diagnostics to be interleaved with conversions.The AD7124-8 also supports per channel configuration. Thedevice allows eight configurations or setups. Each configurationconsists of gain, filter type, output data rate, buffering, andreference source. The user can assign any of these setups on achannel by channel basis.The AD7124-8 also has extensive diagnostic functionalityintegrated as part of its comprehensive feature set. Thesediagnostics include a cyclic redundancy check (CRC), signalchain checks, and serial interface checks, which lead to a morerobust solution. These diagnostics reduce the need for externalcomponents to implement diagnostics, resulting in reducedboard space needs, reduced design cycle times, and cost savings.The failure modes effects and diagnostic analysis (FMEDA) of atypical application has shown a safe failure fraction (SFF) greaterthan 90% according to IEC 61508.The device operates with a single analog power supply from 2.7 Vto 3.6 V or a dual 1.8 V power supply. The digital supply has arange of 1.65 V to 3.6 V. It is specified for a temperature rangeof −40°C to +125°C. The AD7124-8 is housed in a 32-leadLFCSP package.Note that, throughout this data sheet, multifunction pins, suchas DOUT/RDY, are referred to either by the entire pin name orby a single function of the pin, for example, RDY, when onlythat function is relevant.Applications Temperature measurement Pressure measurement Industrial process control Instrumentation Smart transmitters
