The HMC270AMS8GE are broad-band non-reflectiveGaAs SPDT switches in 8 lead MSOP grounded basesurface mount plastic packages. Covering DC to 8GHz, the switch offers excellent isolation from 70 to35 dB. The negative control voltage of -5 volts allowsoperation down to DC. If positive control is requiredalong with high isolation, see the DC to 3.5 GHzHMC284AMS8GE non-reflective SPDT.APPLICATIONSThe HMC270AMS8GE is ideal for DC - 8.0 GHz applications: CATV MMDS and wireless LAN Wireless local loop

The HMC547ALP3E is a general purposebroadband high isolation non-reflective GaAspHEMT SPDT switch in low cost leadless QFNsurface mount plastic package. Covering DC to20 GHz, the switch offers high isolation and lowinsertion loss. The switch features >50 dB isolationup to 5 GHz and >40 dB isolation up to 15 GHz.The switch operates using complementary negativecontrol voltage logic lines of -5/0V and requires nobias supply. The HMC547ALP3E are packaged inleadless QFN 3×3 mm surface mount packages.Applications Basestation infrastructure Fiber optics and broadband telecom Microwave radio and VSAT Military radios, Radar, and ECM Test instrumentation

The ADG5248F and ADG5249F are 8:1 and dual 4:1 analog multiplexers. The ADG5248F switches one of eight inputs to a common output and the ADG5249F switches one of four differential inputs to a common differential output. Each channel conducts equally well in both directions when on, and each channel has an input signal range that extends to the supplies. The primary supply voltages define the on-resistance profile, whereas the secondary supply voltages define the voltage level at which the overvoltage protection engages.When no power supplies are present, the channel remains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed positive fault voltage (POSFV) or negative fault voltage (NEGFV) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the switch is selected to be on, then the drain pin is pulled to the secondary supply voltage that was exceeded. Input signal levels up to +55 V or −55 V relative to ground are blocked, in both the powered and unpowered condition.The low capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch switching and fast settling times are required. Note that, throughout this data sheet, multifunction pins, such as A0/F2, are referred to either by the entire pin name or by a single function of the pin, for example, A0, when only that function is relevant. Product Highlights Source pins are protected against voltages greater than the secondary supply rails, up to −55 V and +55 V. Source pins are protected against voltages between −55 V and +55 V in an unpowered state. Overvoltage detection with digital output indicates operating state of switches. Trench isolation guards against latch-up. Optimized for low charge injection and on-capacitance. The ADG5248F/ADG5249F can be operated from a dual supply of ±5 V to ±22 V or a single power supply of 8 V to 44 V.Applications Analog input/output modules Process control/distributed control systems Data acquisition Instrumentation Avionics Automatic test equipment Communication systems Relay replacement

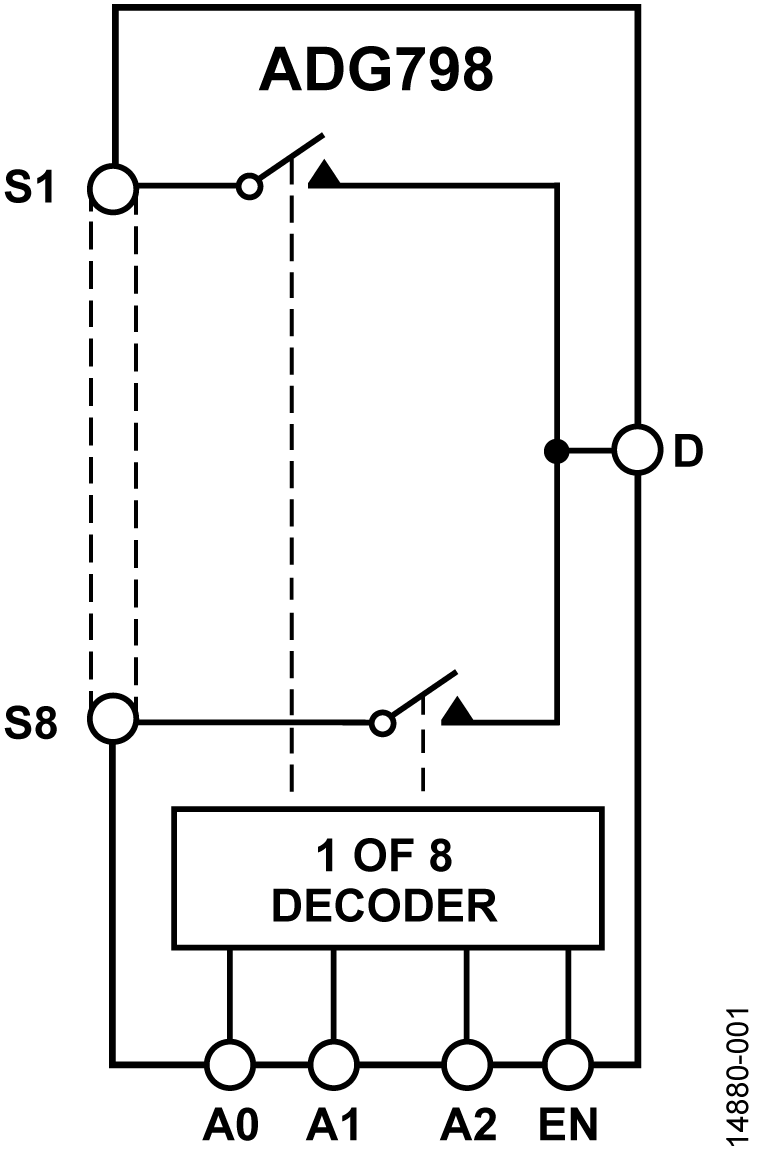

The ADG798 is a low voltage, CMOS, analog multiplexer designed to operate at very high temperatures up to 210°C. The ADG798 switches one of eight inputs (S1 to S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. An EN input on the device is used to enable or disable the device. When the device is disabled, all channels are switched off. The ADG798 features low power consumption and a 3.3 V to 5.5 V operating supply range. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels. These switches are designed with an enhanced submicron process that provides low power dissipation, high switching speed and very low on resistance.The on resistance (RON) is a maximum of 10 Ω and is closely matched between switches and very flat over the full signal range. The ADG798 operates equally well as either a multiplexer or a demultiplexer and has an input signal range that extends tothe supplies.This mux is available in a 16-lead ceramic flat package (FLATPACK) and a 16-lead ceramic flat package with reverse formed gullwing leads (FLATPACK_RF). Both of the flat packages have an operating temperature range of −55°C to +210°C. A 16-lead TSSOP package is also available that has an operating temperature range of −55°C to +175°C. All packages are designed for robustness at extreme temperatures, and are qualified for 1000 hours of continuous operation at the maximum temperature rating.The ADG798 is a member of a growing series of high temperature qualified products offered by Analog Devices, Inc. For a complete selection table of available high temperature products, see the high temperature product list and qualification data available at http://www.analog.com/hightemp.Product Highlight Single-/Dual-Supply Operation. The ADG798 is fully specified and guaranteed with 3.3 V and 5 V single-supply rails and ±2.5 V dual-supply rails. Low RON. The RON of the ADG798 is specified at 5 Ω typical at 210°C. Low power consumption. The power consumption of the ADG798 is specified at <0.01 μW.  Guaranteed Break-Before-Make Switching Action.Applications Downhole drilling and instrumentation Avionics Heavy industrial High temperature environments

The ADGS5412 contains four independent single-pole/single-throw (SPST) switches. A serial peripheral interface (SPI) controls the switches. The SPI interface has robust error detection features, including cyclic redundancy check (CRC) error detection, invalidread/write address detection, and serial clock (SCLK) counterror detection.It is possible to daisy-chain multiple ADGS5412 devices together,which enables the configuration of multiple devices with aminimal amount of digital lines. The ADGS5412 can also operate in burst mode to decrease the time between SPIcommands. Each switch conducts equally well in both directions when on,and each switch has an input signal range that extends to thesupplies. In the off condition, signal levels up to the supplies are blocked. The on-resistance profile is very flat over the full analog input range, which ensures good linearity and low distortion when switching audio signals. The ADGS5412 exhibits break-before-make switching action, allowing use of the device in multiplexer applications with external wiring.PRODUCT HIGHLIGHTS SPI interface removes the need for parallel conversion and logic traces and reduces general-purpose input/output (GPIO) channel count. Daisy-chain mode removes additional logic traces when multiple devices are used. CRC, invalid read/write address, and SCLK count error detection ensure a robust digital interface. CRC error detection capabilities allow for the use of the ADGS5412 in safety critical systems. Guaranteed break-before-make switching allows the use of the ADGS5412 in multiplexer configurations with external wiring.Trench isolation analog switch section guards against latch-up. A dielectric trench separates the positive (P) and negative (N) channel transistors thereby preventing latch-up even under severe overvoltage conditions.APPLICATIONS Relay replacement Automatic test equipment Data acquisition Instrumentation Avionics Audio and video switching Communication systems

LOW VOLTAGE SINGEL SPDT; No. of Channels: 1Channels; Analogue Switch Type: SPDT; On State Resistance Max: 4ohm; Supply Voltage Range: 1.8V to 5.5V; Analogue Switch Case: SOT-23; No. of Pins: 6Pins; Operating Temperature Min: -40°C; Operating Temperature Max: 125°C; Product Range: ADG719 Series; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (07-Jul-2017); Analogue Switch Case Style: SOT-23

Analogue Switch ICs 2.1 ? Maximum On Resistance, 15 V/+12/ 5 V iCMOS Dual SPST Switches
