DC1513B-AA: Demo Board for LTM9004 14-Bit Direct Conversion Receiver Subsystem.

Demonstration circuit DC1555C is intended to demonstrate the performance of the LTC4365 and LTC4365-1 Undervoltage, Overvoltage and Reverse Supply Protection Controllers. The LTC4365/LTC4365-1 protect circuits from input voltages that may be too high, too low or negative. It operates by controlling the gates of two back-to-back connected MOSFETs to keep the output in a safe range. The OV and UV protection levels are adjusted by resistive dividers at the OV and UV pins. Asserting the SHDN pin disables the MOSFETs and places the controller in a low-current shutdown state. The FAULT pin is asserted when the Controller is in shutdown mode or when the input voltage is outside of the UV or OV level.

DC1935A-B: Demo Board for the LT4363 High Voltage Surge Stopper with Current Limit.

DC2062A-A: Demo Board for LT4363 High Voltage Surge Stopper with Current Limit.

The LTC5562 is a versatile low power mixer optimized for applications requiring very wide input bandwidth, low distortion, and low LO leakage. This mixer can be used for either upconverting or downconverting applications, and provides a nominal conversion gain of 1dB. Demonstration circuit 2483A-A showcases the LTC5562 mixer for upconverting applications while demonstration circuit 2483A-B is tuned for downconverting applications. The differential inputs are optimized for use with 1:1 transmission- line baluns, allowing very wideband impedance matching. The LTC5562 uses a 3.3V supply for low power consumption and an enable pin allows the part to be shut down for further power savings. The total mixer current is adjustable, allowing for even further power savings. The standard match frequency ranges for each board are outlined in the table below.

DC1659A-B: Demo Board for the LT6109 High Side Current Sense Amplifier with Reference and Comparators.

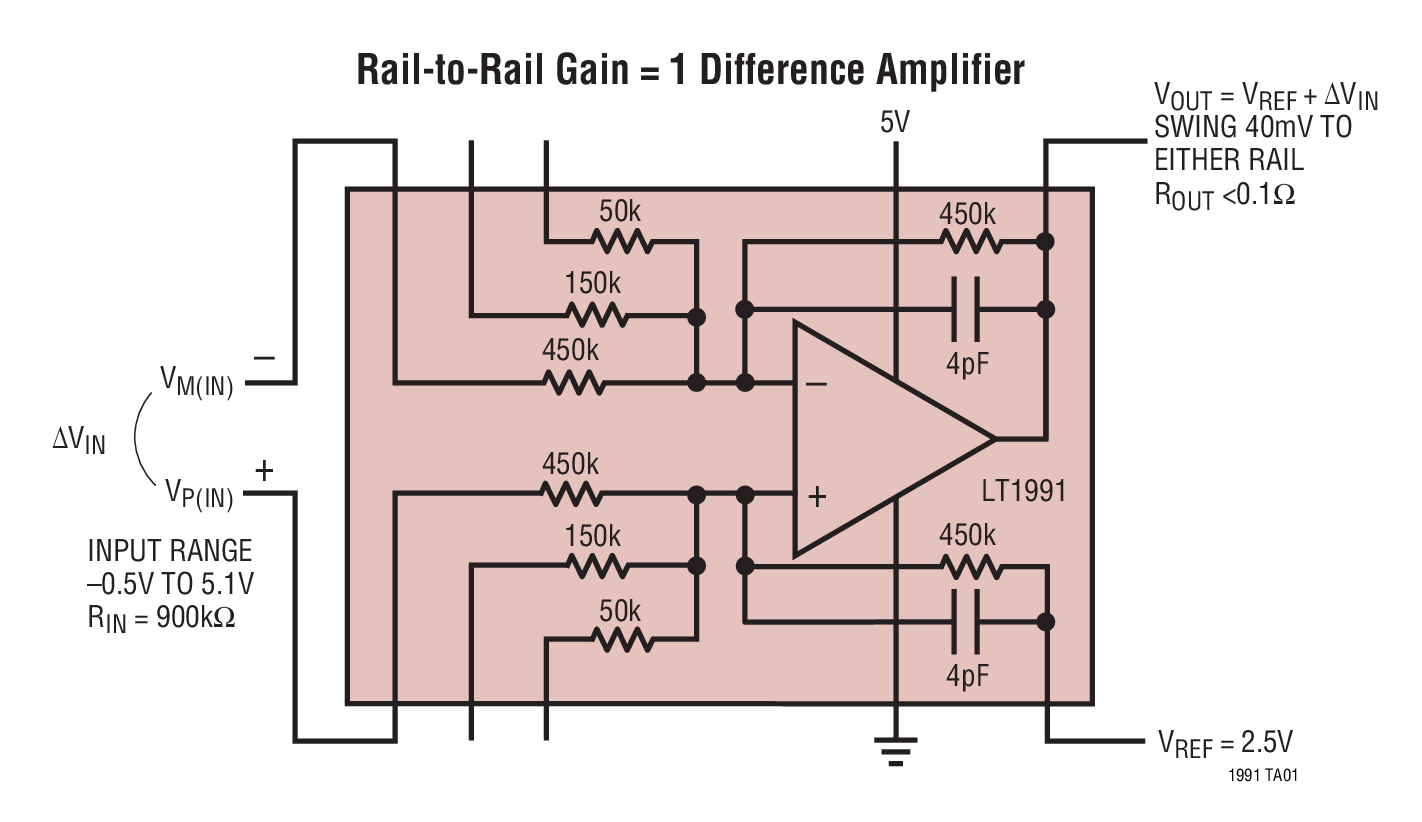

DC819A Demo Board for: LT1990 ±250V Input Range G = 1, 10, Micropower, Difference Amplifier LT1995 30MHz, 1000V/µs Gain Selectable Amplifier LT1991 Precision, 100µA Gain Selectable Amplifier

DC1659A-A: Demo Board for the LT6109 High Side Current Sense Amplifier with Reference and Comparators.

DC1870A is a 1.5A low dropout linear regulator featuring the LT3081. The device is designed for rugged industrial applications and can be paralleled for higher output current or heat spreading. Besides paralleling, the LT3081 also presents other features including adjustability to zero VOUT, reverse protection for input and output-to-input voltages, temperature monitor, output current monitor, etc. A key feature of the LT3081 is the extended safe operating area (SOA). With the precision zero TC 50μA reference current source, a single resistor programs the output voltage to any level between zero and 34.5V. Internal protection circuitry includes reverse-battery and reverse-current protection, current limiting and thermal limiting.

ADZS-AD2428MINI is a low-cost, mini break-out board which can interface with EV-SOMCRR-EZKIT (via a 100-pin connector) or any custom board (via a 32 pin 0.1" header). It supports main and subordinate node capability as well as bus and local power configurations. An Automotive Audio Bus (A2B®) system consists of a single main node and at least one subordinate node, where the transceiver at the host controller is the main node. The main transceiver generates clock, synchronization, and framing for all subordinate nodes and is programmable over a control bus (I2C) for configuration and readback. An extension of this control bus is embedded in the A2B data stream, which enables the host to directly access subordinate transceiver registers and any I2C-connected peripherals on subordinate nodes. Transceivers can connect directly to PDM microphones and to numerous peripherals via I2C and a multichannel I2S/TDM interface. Finally, the transceiver also supports an A2B bus powering feature, where the main node supplies voltage and current to the subordinate nodes over the same daisy-chained, twisted pair wire cable as used for the communication link, thus eliminating the need for a power supply on bus-powered subordinate nodes. Due to the numerous configurations that are possible for a given A2B system, there are several evaluation platforms that can be used in combination to verify system operation, as summarized in the table below. Product Comparison Guide A2B Evaluation Board Main/Subordinate Power Supply I2S/TDM PDM Mics EVAL-AD2428WD1BZ Main/Subordinate Local Yes 3 EVAL-AD2428WB1BZ Subordinate Bus Yes 2 EVAL-AD2428WC1BZ Subordinate Bus No 4 EVAL-AD2428WG1BZ Subordinate Local Yes 0  ADZS-AD2428MINI  Main/Subordinate Local/Bus  Yes   0 Please contact your local ADI sales office or authorized ADI product distributor to receive additional product information and technical support.
