The ADG419 is a monolithic CMOS SPDT switch. This switch is designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.The on resistance profile of the ADG419 is very flat over the full analog input range, ensuring excellent linearity and low distortion. The part also exhibits high switching speed and high signal bandwidth. CMOS construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.Each switch of the ADG419 conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The ADG419 exhibits break-before-make switching action.The ADG419-EP supports defense and aerospace applications (AQEC)Applications Precision test equipment Precision instrumentation Battery-powered systems Sample-and-hold systems

The ADG508F and ADG509F are CMOS analog multiplexers, with the ADG508F comprising eight single channels and the ADG509F comprising four differential channels. These multiplexer provides fault protection. Using a series n-channel, p-channel, n-channel MOSFET structure, both device and signal source protection is provided in the event of an overvoltage or power loss. The multiplexer can withstand continuous overvoltage inputs from -40 V to +55 V. During fault conditions with power supplies off, the multiplexer input (or output) appears as an open circuit and only a few nanoamperes of leakage current will flow. This protects not only the multiplexer and the circuitry driven by the multiplexer, but also protects the sensors or signal sources that drive the multiplexer.The ADG508F switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2. The ADG509F switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on each device is used to enable or disable the device. When disabled, all channels are switched OFF.PRODUCT HIGHLIGHTS Fault protection. The ADG508F/ADG509F can withstand continuous voltage inputs from −40 V to +55 V. When a fault occurs due to the power supplies being turned off, all the channels are turned off and only a leakage current of a few nanoamperes flows. On channel saturates while fault exists. Low RON. Fast switching times. Break-before-make switching. Switches are guaranteed break-before-make so that input signals are protected against momentary shorting. Trench isolation eliminates latch-up. A dielectric trench separates the p and n-channel MOSFETs thereby preventing latch-up.APPLICATIONS Existing multiplexer applications (both fault-protected and nonfault-protected) New designs requiring multiplexer functions

The ADG604 is a CMOS analog multiplexer, comprising foursingle channels. It operates from a dual supply of ± 2.7 V to±5.5 V, or from a single supply of 2.7 V to 5.5 V.The ADG604 switches one of four inputs to a common output,D, as determined by the 3-bit binary address lines, A0, A1, andEN. A Logic “0” on the EN pin disables the device.The ADG604 offers ultralow charge injection of ±1.5 pC over theentire signal range and leakage currents of 10 pA typical at 25°C.It offers on resistance of 85 Ω typ, which is matched to within 2 Ωbetween channels. The ADG604 also has low power dissipation yetgives high switching speeds. The ADG604 is available in a 14-leadTSSOP package.PRODUCT HIGHLIGHTS Ultralow Charge Injection (QINJ: ±1.5 pC Typ over the Full Signal Range) Leakage Current <0.5 nA max @ 85°C Dual ±2.7 V to ±5.5 V or Single 2.7 V to 5.5 V Supply Fully Specified to 125°C Small 14-Lead TSSOP PackageAPPLICATIONS Automatic Test Equipment Data Acquisition Systems Battery-Powered Instruments Communication Systems Sample and Hold Systems Remote-Powered Equipment Audio and Video Signal Routing Relay Replacement Avionics

The ADG658 and ADG659 are low voltage, CMOS analogmultiplexers comprised of eight single channels and fourdifferential channels, respectively. The ADG658 switches one ofeight inputs (S1–S8) to a common output, D, as determined bythe 3-bit binary address lines A0, A1, and A2. The ADG659switches one of four differential inputs to a common differentialoutput, as determined by the 2-bit binary address lines A0 andA1. An EN input on both devices enables or disables the device.When disabled, all channels are switched off.These devices are designed on an enhanced process that provideslower power dissipation yet gives high switching speeds. Thesedevices can operate equally well as either multiplexers or demultiplexersand have an input range that extends to the supplies. Allchannels exhibit break-before-make switching action, preventingmomentary shorting when switching channels. All digital inputshave 0.8 V to 2.4 V logic thresholds, ensuring TTL/CMOS logiccompatibility when using single +5 V or dual ±5 V supplies. The ADG658 and ADG659 are available in 16-lead TSSOP/QSOP packages and 16-lead 4 mm × 4 mm LFCSP packages.Product Highlights Single- and dual-supply operation. The ADG658 and ADG659 offer high performance and are fully specified and guaranteed with ±5 V, +5 V, and +3 V supply rails. Automotive temperature range −40°C to +125°C. Low power consumption, typically <0.1 μW. 16-lead 4 mm × 4 mm LFCSP packages, 16-lead TSSOP package and 16-lead QSOP package.Applications Automotive applications Automatic test equipment Data acquisition systems Battery-powered systems Communication systems Audio and video signal routing Relay replacement Sample-and-hold systems Industrial control systems

The ADG714 is a complementary metal-oxide semiconductor (CMOS), octal single-pole, single-throw (SPST) switch controlled via a 3-wire serial interface. On resistance is closely matched between the switches and is flat over the full signal range. Each switch conducts equally well in both directions, and the input signal range extends to the supplies. Data is written to these devices in the form of 8 bits, each bit corresponding to one channel.The ADG714 uses a 3-wire serial interface that is compatiblewith serial peripheral interface (SPI), QSPI™, MICROWIRE™ interface standards, and most digital signal processing (DSP) interface standards. The output of the shift register DOUT enables a number of these devices to be daisy-chained. On power-up, all switches are in the OFF condition, and the internal registers contain all zeros.A low power consumption and operating supply range of 2.7 V to 5.5 V makes this part ideal for many applications. The ADG714 may also be supplied from a dual ±2.5 V supply. TheADG714 is available in a 24-lead TSSOP and a 24-lead LFCSP.Product Highlights 3-wire serial interface. Single-/dual-supply operation. The ADG714 and ADG715 are fully specified and guaranteed with 3 V, 5 V, and ±2.5 V supply rails. Low on resistance, typically 2.5 Ω. Low leakage. Power-on reset. A 24-lead TSSOP. A 24-lead LFCSP. Applications Data acquisition systems Communication systems Relay replacement Audio and video switching

The ADM3202 / ADM3222 / ADM1385 are high speed, 2-channel RS232/V.28 interface devices which operate from a single +3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ADM1385) makes them ideal for battery powered portable instruments.The ADM3202 / ADM3222 / ADM1385 conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 230 kbps. Four external 0.1 µF charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single +3.3 V supply.The ADM3222 / ADM1385 contain additional enable and shutdown circuitry. The EN input may be used to three-state the receiver outputs. The SD input is used to power down the charge pump and transmitter outputs reducing the quiescent current to less than 1 µA. The receivers remain enabled during shutdown unless disabled using EN.The ADM3202 is available in a 16-lead DIP, narrow and wide SO as well as a space saving TSSOP package. The ADM3222 is available in 18 lead DIP , SO and in 20 lead SSOP and TSSOP. The ADM1385 is available in a 20 lead SSOP package and is pin compatible with the LTC1385 CG.APPLICATIONS General-purpose RS-232 data link Portable instruments Printers, palmtop computers, PDAs

The ADM3312E is a three-driver/three-receiver serial port transceiver, which meets full EIA-232 standards while operating from a single power supply as low as +2.7V. It features an on-board, charge pump dc-to-dc converter, which eliminates the need for dual power supplies. This dc-to-dc converter also contains a voltage tripler and voltage inverter for internally generating positive and negative supplies from the power supply. It operates in Green Idle Mode, where the charge pump oscillator is gated on and off to maintain output voltage to +/-7.25 V, regardless of the load conditions. Another key feature is its ESD protection: up to +/-15kV on all I/O lines. The ADM3312E is available in a 24-pin TSSOP package as well as a space-saving 32-pin LFCSP package.APPLICATIONS Mobile phone handsets/data cables Laptop and notebook computers Printers Peripherals Modems PDAs/Hand-Held Devices/Palmtop Computers

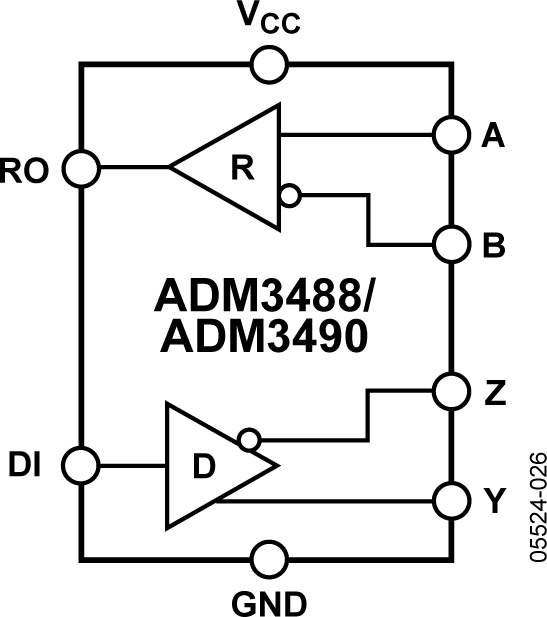

The ADM3483E / ADM3486E / ADM3488E / ADM3490E / ADM3491E are 3.3 V, low power data transceivers with ±15 kV ESD protection suitable for full- and half-duplex communication on multipoint bus transmission lines. Theyare designed for balanced data transmission, and they comply with TIA/EIA standards RS485 and RS-422. The ADM3483E / ADM3486E are half-duplex transceivers that share differential lines and have separate enable inputs for the driver and receiver. The full-duplex ADM3488E / ADM3490E / ADM3491E transceivers have dedicated differential line driver outputs and receiver inputs. The ADM3491E also features separate enable inputs for the driver and receiver.The devices have a 12 kΩ receiver input impedance, which allows up to 32 transceivers on a bus. Because only one driver should be enabled at any time, the output of a disabled or powered-down driver is tristated to avoid overloading the bus.The driver outputs of the ADM3483E / ADM3486E / ADM3488E are slew rate limited, in order to reduce EMI and data errors caused by reflections from improperly terminated buses. The receiver has a fail-safe feature thatensures a logic high output when the inputs are floating. Excessive power dissipation caused by bus contention or by output shorting is prevented with a thermal shutdown circuit. The parts are fully specified over the industrial temperature range and are available in 8-lead and 14-lead narrow SOIC packages.APPLICATIONS Power/energy metering Telecommunications EMI-sensitive systems Industrial control Local area networks

The ADM3483 / ADM3485 / ADM3488 / ADM3490 / ADM3491 are low power, differential line transceivers designed to operate using a single 3.3 V power supply. Low power consumption, coupled with a shutdown mode, makes the ADM3483/ADM3485/ADM3488/ ADM3490/ADM3491 ideal for power-sensitive applications.The ADM3488 / ADM3490 / ADM3491 feature full-duplex communication, while the ADM3483 / ADM3485 are designed for half-duplex communication.The ADM3485 / ADM3490 / ADM3491 transmit at up to 10 Mbps. The receiver input impedance is 12 kΩ, allowing up to 32 transceivers to be connected on the bus. A thermal shutdown circuit prevents excessive power dissipation caused by bus contention or by output shorting. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, then the thermal shutdown circuit forces the driver output into a high impedance state. If the inputs are unconnected (floating), the receiver contains a fail-safe feature that results in a logic high output state. The parts are fully specified over the commercial and industrial temperature ranges. The ADM3483 / ADM3485 / ADM3488 / ADM3490 are available in 8-lead SOIC_N; the ADM3491 is available in a 14-lead SOIC_N.APPLICATIONS Low-Power RS-485 Applications Telecom Industrial Process Control HVAC

The ADM690A / ADM692A / ADM802L/M / ADM805L/M family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include mP reset, backup battery switchover, watchdog timer, and power failure warning.The ADM690A / ADM692A / ADM802L/M / ADM805L/M are available in 8-pin packages and provide: Power-on reset output during power-up, power-down and brownout conditions. The RESET output remains operational with VCC as low as 1 V. Battery backup switching for CMOS RAM, CMOS microprocessor or other low power devices. A reset pulse if the optional watchdog timer has not been toggled within 1.6 seconds. A 1.25 V threshold detector for power fail warning, low battery detection, or to monitor a power supply other than +5 V.On the ADM690A / ADM802L / ADM805L the reset voltage threshold is 4.65 V. On the ADM692A / ADM802M / ADM805M, the reset voltage threshold is 4.40 V.The ADM802L / ADM802M guarantee power fail accuracies to ±2%.
