Signal and Power Isolated CAN Transceiver with Integrated Isolated DC-to-DC Converter

Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier Features:2 channels in a small, 4 mm 4 mm LFCSPLFCSP package has no metal pad-- More routing room-- No current leakage to padGain set with 1 external resistor-- Gain range: 1 to 1000Input voltage goes below groundInputs protected beyond suppliesVery wide power supply range-- Single supply: 2.2 V to 36 V-- Dual supply: 1.35 V to 18 VBandwidth (G = 1): 1 MHzCMRR (G = 1): 80 dB minimumInput noise: 24 nV/HzTypical supply current (per amp): 350 ASpecified temperature range: 40C to +125C

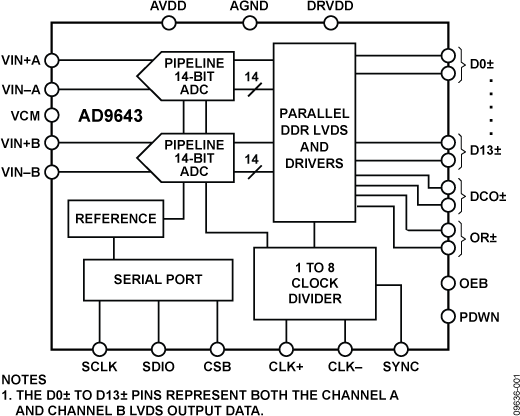

14-Bit, 170 MSPS/210 MSPS/250 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC) Features: SNR = 70.6 dBFS at 185 MHz AIN and 250 MSPS SFDR = 85 dBc at 185 MHz AIN and 250 MSPS −151.6 dBFS/Hz input noise at 185 MHz, −1 dBFS AIN and 250 MSPS Total power consumption: 785 mW at 250 MSPS 1.8 V supply voltages LVDS (ANSI-644 levels) outputs Integer 1-to-8 input clock divider (625 MHz maximum input) Sample rates of up to 250 MSPS IF sampling frequencies of up to 400 MHz Internal ADC voltage reference Flexible analog input range 1.4 V p-p to 2.0 V p-p (1.75 V p-p nominal) ADC clock duty cycle stabilizer 95 dB channel isolation/crosstalk Serial port control Energy saving power-down modes

8-Channel, 1.5 MSPS, 12-Bit Parallel ADCs with a Sequencer Features: Throughput rate: 1.5 MSPS Specified for VDD of 2.7 V to 5.25 V 8 analog input channels with a sequencer Software-configurable analog inputs 8-channel single-ended inputs 4-channel fully differential inputs 4-channel pseudo differential inputs 7-channel pseudo differential inputs Accurate on-chip 2.5 V reference ±0.2% maximum at 25°C, 25 ppm/°C maximumPower consumption 6 mW maximum at 1.5 MSPS with 3 V supplies 13.5 mW maximum at 1.5 MSPS with 5 V supplies 69 dB SINAD at 50 kHz input frequency No pipeline delays High speed parallel interface—word/byte modes Full shutdown mode: 2 μA maximum 32-lead LFCSP and TQFP packages

The AD7402 is a high performance, second-order, ?-? modulator that converts an analog input signal into a high speed, single-bit data stream, with on-chip digital isolation based on Analog Devices, Inc., iCoupler? technology. The AD7402 operates from a 4.5 to 5.5 V (VDD1) power supply and accepts a differential input signal of ?250 mV (?320 mV full scale). The differential input is ideally suited to shunt voltage monitoring in high voltage applications where galvanic isolation is required.The analog input is continuously sampled by a high performance analog modulator, and converted to a ones density, digital output stream with a data rate of 10 MHz. The original information can be reconstructed with an appropriate digital filter to achieve 87 dB signal to noise ratio (SNR) at 39 kSPS. The serial input/output can use a 3 V to 5.5 V or a 3.3 V supply (VDD2).The serial interface is digitally isolated. High speed complementary metal oxide semiconductor (CMOS) technology, combined with monolithic transformer technology, means the on-chip isolation provides outstanding performance characteristics, superior to alternatives such as optocoupler devices. The AD7402 device is offered in an 8-lead wide body SOIC package and has an operating temperature range of ?40?C to +105?C.Safety and regulatory approvals UL recognition 5000 V rms for 1 minute per UL 1577 CSA Component Acceptance Notice 5A VDE Certificate of Conformity DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 VIORM = 1250 VPEAKApplications Shunt current monitoring AC motor controls Power and solar inverters Wind turbine inverters Data acquisition systems Analog-to-digital and opto-isolator replacements

Precision, High Speed, BiFET Quad Op Amp Features: DC PERFORMANCE 1.5 mV maximum offset voltage 8 µV/°C typical drift 150 V/mV minimum open-loop gain 2 µV p-p typical Noise, 0.1 Hz to 10 Hz True 14-Bit Accuracy Single Version: AD711 Dual Version: AD712 Available in 16-lead SOIC, 14-lead P-DIP and Hermetic Cerdip Packages AC PERFORMANCE 1 µs Settling to 0.01% for 10 V Step 20 V/µs Slew Rate 0.0003% Total Harmonic Distortion (THD) 4 MHz Unity Gain Bandwidth

15 kV ESD Protected, 3.3 V, RS-232 Line Driver/Receiver Features: Data rate: 460 kbps  2 Tx and 2 Rx  Meets EIA-232E specifications  0.1 μF charge pump capacitors  ESD protection to IEC1000-4-2 (801.2) on TTL/CMOS and RS-232 I/Os  Contact discharge: ±8 kV  Air gap discharge: ±15 kV

High-Speed, 2-Channel RS232/V.28 Interface Devices Features: 460 kbps Data Rate Specified at 3.3 V Meets EIA-232E Specifications 0.1 µF Charge Pump Capacitors Low Power Shutdown (ADM3222E and ADM1385) DIP, SO, SOIC, SSOP and TSSOP Upgrade for MAX3222/32 and LTC1385 See datasheet for additional features

12-Bit High Bandwidth Multiplying DAC with Serial Interface including a Serial Data Output line Features: 12 MHz multiplying bandwidth INL of ±0.5 LSB at 12 bits Pin-compatible 12-/14-bit current output DAC 2.5 V to 5.5 V supply operation 10-lead MSOP package ±10 V reference input 50 MHz serial interface 2.7 MSPS update rate Extended temperature range: −40°C to +125°C 4-quadrant multiplication Power-on reset with brownout detection 0.4 µA typical current consumption Guaranteed monotonic

DIGITAL POT 100KOHM SINGLE TSSOP-14; End To End Resistance:100kohm; No. of Pots:Single; Control Interface:I2C; Resistance Tolerance:-30% +50%; Supply Voltage Min:2.7V; Supply Voltage Max:5.5V; Potentiometer IC Case Style:TSSOP; No. of Pins:14Pins; No. of Steps:256; Temperature Coefficient:± 30ppm/°C; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:Single 256-Tap Volatile Digital Pots; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (20-Jun-2016)
